100G CFP, CXP, CPAK модулі

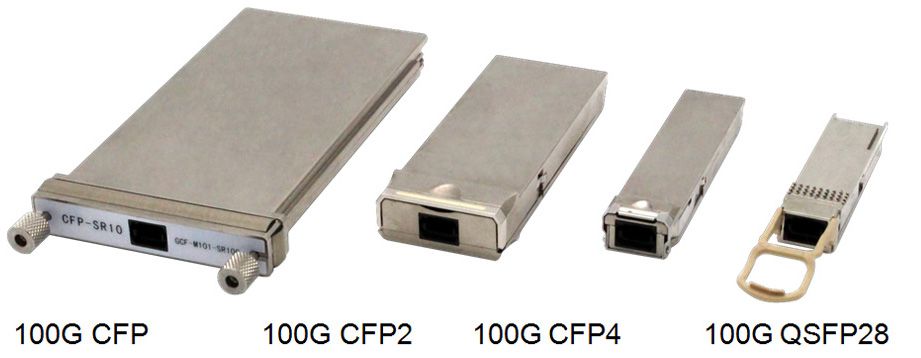

100G CFP4, 100G CFP2, 100G CFP, 100G CXP, 100G CPAK
100G Високошвидкісні типи оптичних трансиверів стандарту 100GBASE (100Gb/s).
CFP4 100G (модулі)
| Model CFP4 100G transceiver module | Data rate | Distance | Wavelength | Optical Components |
Connector |
| CFP4-100G-LR4 | 112 Gb/s | 10 km (6.2 mi) | 1310 nm | 4x DFB | LC duplex |
CFP2 100G (модулі)
| Model CFP2 100G transceiver module | Data rate | Distance | Wavelength | Optical Components |
Connector |
| CFP2-100G-LR4 | 112 Gb/s | 10 km (6.2 mi) | 1310 nm | 4x DFB | LC duplex |
CFP 100G (модулі)
| Model CFP 100G transceiver module | Data rate | Distance | Wavelength | Optical Components |
Connector |
| CFP-100G-SR10 MTP/MPO-24 | 103.1 Gb/s | 100 m (328 ft)/ 150 m (492 ft) |
850 nm | 4x VCSEL | MTP / MPO |
| CFP-100G-LR4 | 103.1 Gb/s | 10 km (6.2 mi) | 1310 nm | 4x DFB | LC duplex |
| CFP-100G-ER4 | 103.1 Gb/s | 40 km (24.9 mi) | 1310 nm | 4x DFB | LC duplex |
CXP 100G (модулі)
| Model CXP 100G transceiver module | Data rate | Distance | Wavelength | Optical Components |
Connector |
| CXP-100G-SR10 MTP/MPO-24 | 120 Gb/s | 100 m (328 ft)/ 150 m (492 ft) |
850 nm | 12x VCSEL | MTP / MPO |
CPAK Cisco 100G (модулі)
| Model CPAK Sico 100G transceiver module | Data rate | Distance | Wavelength | Optical Components |
Connector |
| Cisco CPAK-100G-SR10 | 103.1 Gb/s | 70 m / 100 m | 850 nm MMF (24 fibers) |
||
| Cisco CPAK-100G-SR4 | 103.1 Gb/s | 100 m (328 ft)/ 150 m (492 ft) |
850 nm MMF (12 fibers) |
||
| Cisco CPAK-100G-PSM4 | 103.1 Gb/s | 500 m | 1295 to 1325 SMF (12 fibers) |
||
| Cisco CPAK-100G-CWDM4 | 103.1 Gb/s | 2 km | 1271, 1291, 1311, 1331 SMF Duplex |
||
|
Cisco CPAK-100G-LR4 |
103.1 Gb/s | 10 km | 1310 nm SMF Duplex |
||
| Cisco CPAK-10X10G-LR | 103.1 Gb/s | 10 km | 1310 nm SMF (24 fibers) |
||
| Cisco CPAK-100G-ER4L | 103.1 Gb/s | 25 km | 1310 nm SMF Duplex |
||
| Cisco CPAK-10X10G-ERL | 103.1 Gb/s | 25 km | 1550 nm SMF (24 fibers) |
