SFP трансивери

1G SFP, cSFP (100M~2.5G) модулі трансивери

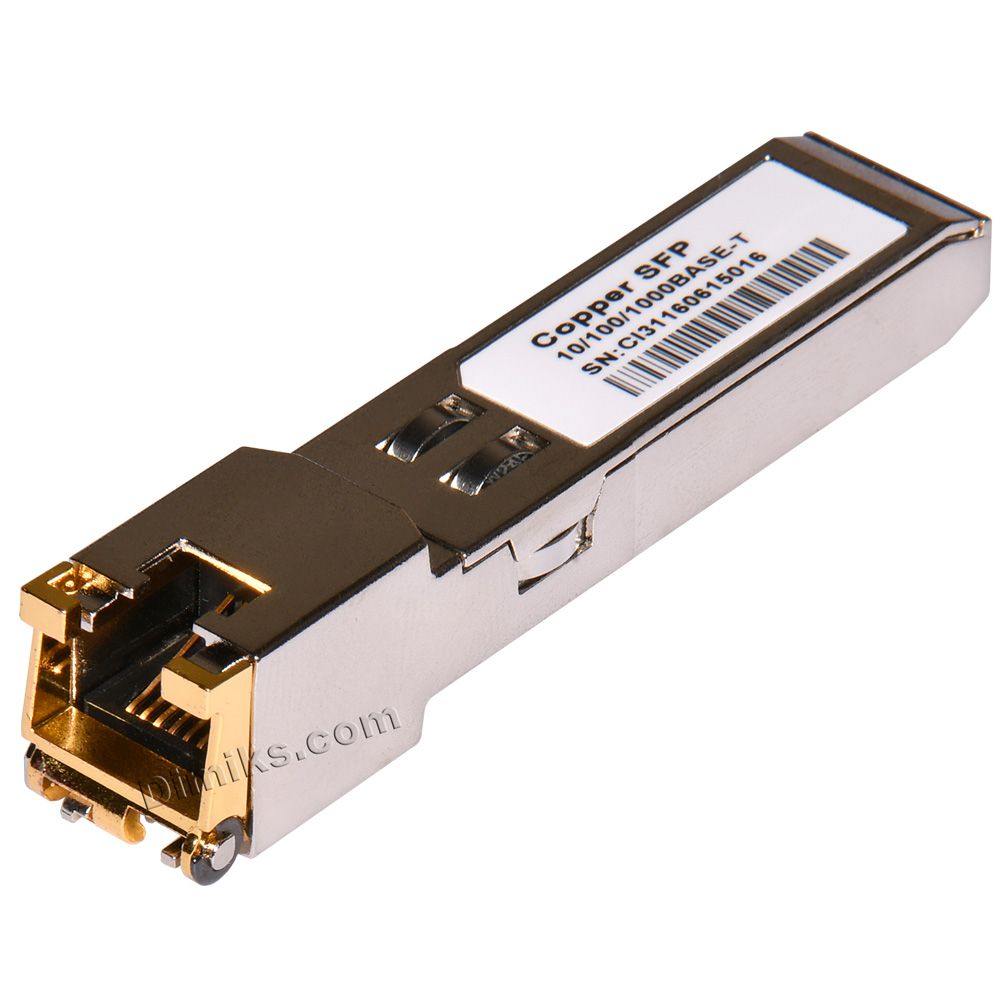

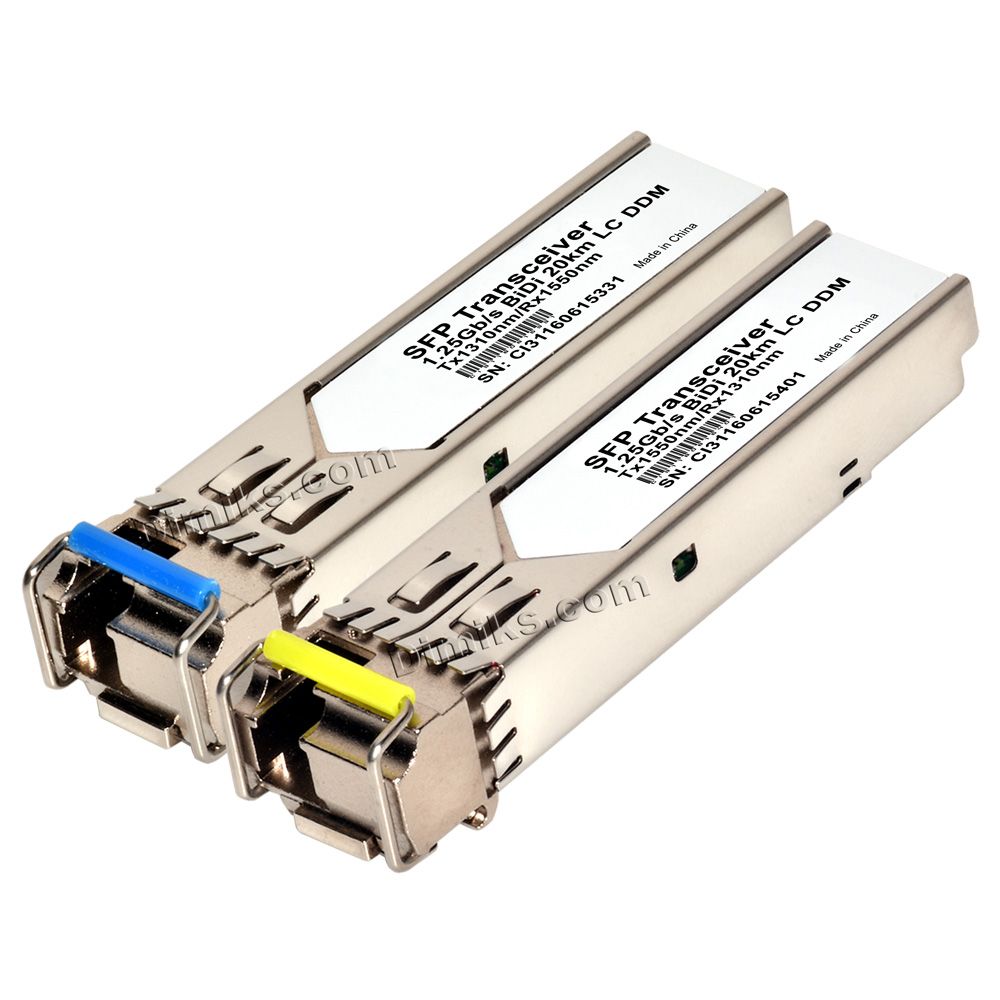

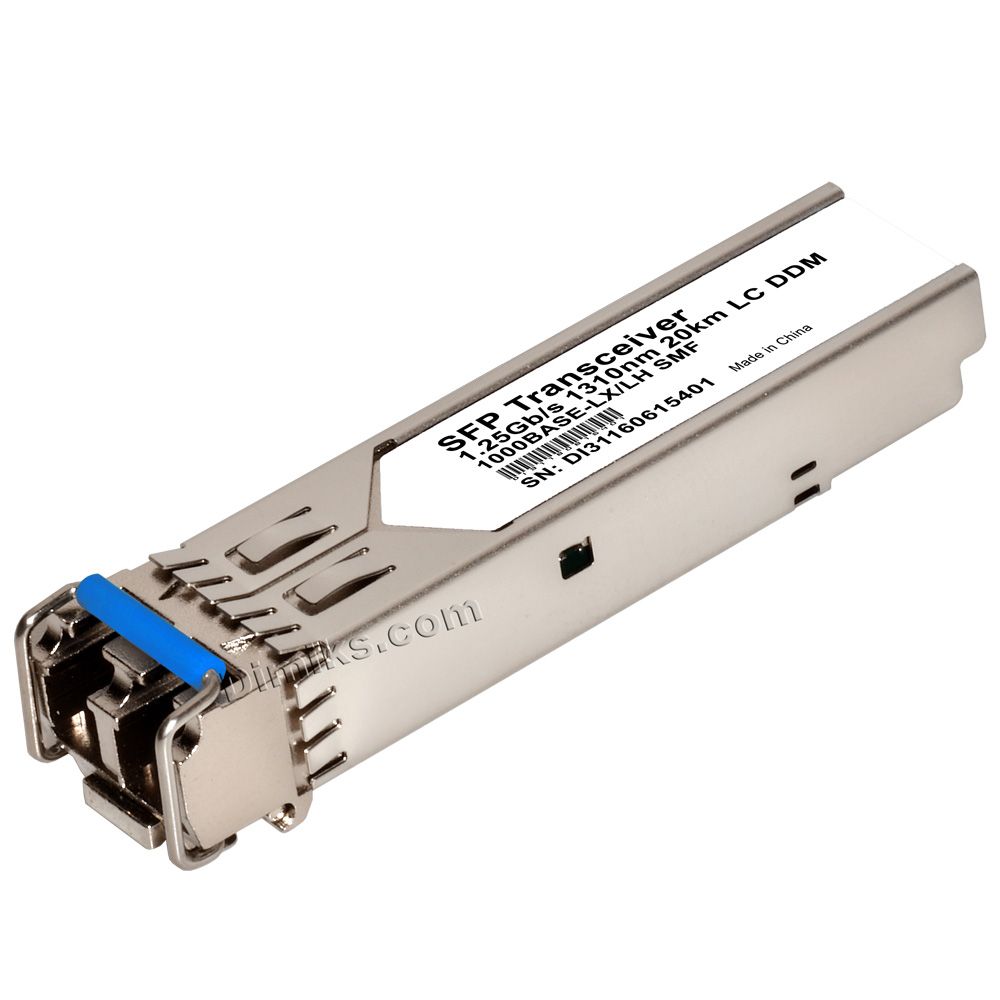

1G SFP Duplex, 1G SFP WDM (BiDi), 1G SFP Copper, 1G SFP CWDM, 1G SFP DWDM, 1G/2.5G cSFP

Сучасні оптичні трансивери розроблені на зміну трансиверів GBIC. Так само їх називають mini-GBIC.

1G SFP, cSFP (100M~2.5G) модулі трансивери1G SFP, cSFP (100M~2.5G) модулі трансивери1G SFP, cSFP (100M~2.5G) модулі трансивери

SFP+ 10G Duplex, Copper (модулі перепрограмуємі)
Model SFP+ 10G transceiver module Data rate Distance Wavelength Connector
SFP+ Copper 10G 30m”>SFP+ Copper 10G 30m 10.3 Gb/s 30 m  (98.4 ft) Copper RJ-45
SFP+ Copper 10G 30m (для HP, HPE)  10.3 Gb/s 30 m  (98.4 ft) Copper RJ-45
SFP+ Duplex 10G 300m 10.3 Gb/s 300 m (984 ft) 850nm LC
SFP+ Duplex 10G 300m (для HP, HPE) 10.3 Gb/s 300 m (984 ft) 850nm LC
SFP+ Duplex 10G 10km 10.3 Gb/s 10 km (6.2 mi) 1310nm LC
SFP+ Duplex 10G 20km 10.3 Gb/s 20 km (12.4 mi) 1310nm LC
SFP+ Duplex 10G 20km (для HP, HPE) 10.3 Gb/s 20 km (12.4 mi) 1310nm LC
SFP+ Duplex 10G 40km 10.3 Gb/s 40 km (24.9 mi) 1310nm LC
SFP+ Duplex 10G 80km 10.3 Gb/s 80 km (49.7 mi) 1550nm LC
SFP+ Duplex 10G 120km 10.3 Gb/s 120 km (74.6 mi) 1550nm LC
SFP+ 10G BiDi (WDM) (модулі перепрограмуємі)
Model SFP+ 10G transceiver module Data rate Distance Wavelength Connector
SFP+ BiDi 10G 3km 10.3 Gb/s 3 km (1.9 mi) 1310nm/1310nm
(модулі U та D однакові)		 LC
SFP+ BiDi 10G OLP 10km
(Автоматично перемикається
на резервне волокно)		 10.3 Gb/s 10 km (6.2 mi) 1270nm/1330nm
1330nm/1270nm
(всередині одного модуля)
 2xLC
SFP+ WDM (BiDi) 10G 10km 10.3 Gb/s 10 km (6.2 mi) 1270nm/1330nm LC
SFP+ WDM (BiDi) 10G 20km 10.3 Gb/s 20 km (12.4 mi) 1270nm/1330nm LC
SFP+ WDM (BiDi) 10G 20km (для HP, HPE)  10.3 Gb/s 20 km (12.4 mi) 1270nm/1330nm LC
SFP+ WDM (BiDi) 10G 40km 10.3 Gb/s 40 km (24.9 mi) 1270nm/1330nm LC
SFP+ WDM (BiDi) 10G 40km (для HP, HPE) 10.3 Gb/s 40 km (24.9 mi) 1270nm/1330nm LC
SFP+ WDM (BiDi) 10G 60km 10.3 Gb/s 60 km (37.3 mi) 1270nm/1330nm LC
SFP+ WDM (BiDi) 10G 70km 10.3 Gb/s 70 km 1270nm/1330nm LC
SFP+ WDM (BiDi) 10G 80km 10.3 Gb/s 80 km (49.7 mi) 1490nm/1550nm LC
SFP+ WDM (BiDi) 10G 100km 10.3 Gb/s 100 km (62.1 mi) 1530nm/1550nm LC
SFP+ 10G CWDM (модулі перепрограмуємі)
Model SFP+ 10G transceiver module Data rate Distance Wavelength
SFP+ CWDM 10G 1270nm 10.3 Gb/s 20 km, 40 km, 60 km 1270 nm
SFP+ CWDM 10G 1290nm 10.3 Gb/s 20 km, 40 km, 60 km 1290 nm
SFP+ CWDM 10G 1310nm 10.3 Gb/s 20 km, 40 km, 60 km 1310 nm
SFP+ CWDM 10G 1330nm 10.3 Gb/s 20 km, 40 km, 60 km 1330 nm
SFP+ CWDM 10G 1350nm 10.3 Gb/s 20 km, 40 km, 60 km 1350 nm
SFP+ CWDM 10G 1370nm 10.3 Gb/s 20 km, 40 km, 60 km 1370 nm
SFP+ CWDM 10G 1390nm 10.3 Gb/s 20 km, 40 km, 60 km 1390 nm
SFP+ CWDM 10G 1410nm 10.3 Gb/s 20 km, 40 km, 60 km 1410 nm
SFP+ CWDM 10G 1430nm 10.3 Gb/s 20 km, 40 km, 60 km 1430 nm
SFP+ CWDM 10G 1450nm 10.3 Gb/s 20 km, 40 km, 60 km 1450 nm
SFP+ CWDM 10G 1470nm 10.3 Gb/s 20 km, 40 km, 60 km, 80 km 1470 nm
SFP+ CWDM 10G 1490nm 10.3 Gb/s 20 km, 40 km, 60 km, 80 km 1490 nm
SFP+ CWDM 10G 1510nm 10.3 Gb/s 20 km, 40 km, 60 km, 80 km 1510 nm
SFP+ CWDM 10G 1530nm 10.3 Gb/s 20 km, 40 km, 60 km, 80 km 1530 nm
SFP+ CWDM 10G 1550nm 10.3 Gb/s 20 km, 40 km, 60 km, 80 km 1550 nm
SFP+ CWDM 10G 1570nm 10.3 Gb/s 20 km, 40 km, 60 km, 80 km 1570 nm
SFP+ CWDM 10G 1590nm 10.3 Gb/s 20 km, 40 km, 60 km, 80 km 1590 nm
SFP+ CWDM 10G 1610nm 10.3 Gb/s 20 km, 40 km, 60 km, 80 km 1610 nm

* – Wideband Receiver

SFP+ 10G CWDM BiDi / BiDi CWDM / CWDM BiDi HD (CWDM one fiber modules)
Model SFP+ 10G CWDM BiDi transceiver Data rate Distance Wavelength
Same wavelength
SFP+ 10G CWDM BiDi 10km (Tx=Rx — 1270nm…1610nm)  10.3 Gb/s 10 km 1270 nm ~ 1610 nm
Different wavelength ±20nm P2P
SFP+ 10G CWDM BiDi 10km (Tx1/Rx2 — 1270nm…1610nm) 10.3 Gb/s 10 km 1270 nm ~ 1610 nm
SFP+ 10G CWDM BiDi 40km (Tx1/Rx2 — 1270nm…1610nm) 10.3 Gb/s 40 km 1270 nm ~ 1610 nm
SFP+ 10G CWDM BiDi 60km (Tx1/Rx2 — 1270nm…1610nm) 10.3 Gb/s 60 km 1270 nm ~ 1610 nm
SFP+ 10G CWDM BiDi 80km (Tx1/Rx2 — 1470nm…1610nm) 10.3 Gb/s 80 km 1470 nm ~ 1610 nm
Same wavelength High and Low ±6.5nm
SFP+ 10G CWDM BiDi HD 10km (±6.5nm — 1270nm…1610nm) 10.3 Gb/s 10 km 1270 nm ~ 1610 nm
SFP+ 10G CWDM BiDi HD 40km (±6.5nm — 1270nm…1610nm) 10.3 Gb/s 40 km 1270 nm ~ 1610 nm
SFP+ 10G CWDM BiDi HD 80km (±6.5nm — 1270nm…1610nm) 10.3 Gb/s 80 km 1270 nm ~ 1610 nm
SFP+ 10G DWDM C-Band (модулі перепрограмуємі)
Model SFP+ 10G transceiver (C-Band) Data rate Distance Channel Frequency, THz Wavelength, nm
SFP+ DWDM 10G C17 10.3 Gb/s 80 km, 100 km C17 191.7 1563.86
SFP+ DWDM 10G C18 10.3 Gb/s 80 km, 100 km C18 191.8 1563.05
SFP+ DWDM 10G C19 10.3 Gb/s 80 km, 100 km C19 191.9 1562.23
SFP+ DWDM 10G C20 10.3 Gb/s 80 km, 100 km C20 192.0 1561.42
SFP+ DWDM 10G C21 10.3 Gb/s 80 km, 100 km C21 192.1 1560.61
SFP+ DWDM 10G C22 10.3 Gb/s 80 km, 100 km C22 192.2 1559.79
SFP+ DWDM 10G C23 10.3 Gb/s 80 km, 100 km C23 192.3 1558.98
SFP+ DWDM 10G C24 10.3 Gb/s 80 km, 100 km C24 192.4 1558.17
SFP+ DWDM 10G C25 10.3 Gb/s 80 km, 100 km C25 192.5 1557.36
SFP+ DWDM 10G C26 10.3 Gb/s 80 km, 100 km C26 192.6 1556.55
SFP+ DWDM 10G C27 10.3 Gb/s 80 km, 100 km C27 192.7 1555.75
SFP+ DWDM 10G C28 10.3 Gb/s 80 km, 100 km C28 192.8 1554.94
SFP+ DWDM 10G C29 10.3 Gb/s 80 km, 100 km C29 192.9 1554.13
SFP+ DWDM 10G C30 10.3 Gb/s 80 km, 100 km C30 193.0 1553.33
SFP+ DWDM 10G C31 10.3 Gb/s 80 km, 100 km C31 193.1 1552.52
SFP+ DWDM 10G C32 10.3 Gb/s 80 km, 100 km C32 193.2 1551.72
SFP+ DWDM 10G C33 10.3 Gb/s 80 km, 100 km C33 193.3 1550.92
SFP+ DWDM 10G C34 10.3 Gb/s 80 km, 100 km C34 193.4 1550.12
SFP+ DWDM 10G C35 10.3 Gb/s 80 km, 100 km C35 193.5 1549.32
SFP+ DWDM 10G C36 10.3 Gb/s 80 km, 100 km C36 193.6 1548.51
SFP+ DWDM 10G C37 10.3 Gb/s 80 km, 100 km C37 193.7 1547.72
SFP+ DWDM 10G C38 10.3 Gb/s 80 km, 100 km C38 193.8 1546.92
SFP+ DWDM 10G C39 10.3 Gb/s 80 km, 100 km C39 193.9 1546.12
SFP+ DWDM 10G C40 10.3 Gb/s 80 km, 100 km C40 194.0 1545.32
SFP+ DWDM 10G C41 10.3 Gb/s 80 km, 100 km C41 194.1 1544.53
SFP+ DWDM 10G C42 10.3 Gb/s 80 km, 100 km C42 194.2 1543.73
SFP+ DWDM 10G C43 10.3 Gb/s 80 km, 100 km C43 194.3 1542.94
SFP+ DWDM 10G C44 10.3 Gb/s 80 km, 100 km C44 194.4 1542.14
SFP+ DWDM 10G C45 10.3 Gb/s 80 km, 100 km C45 194.5 1541.35
SFP+ DWDM 10G C46 10.3 Gb/s 80 km, 100 km C46 194.6 1540.56
SFP+ DWDM 10G C47 10.3 Gb/s 80 km, 100 km C47 194.7 1539.77
SFP+ DWDM 10G C48 10.3 Gb/s 80 km, 100 km C48 194.8 1538.98
SFP+ DWDM 10G C49 10.3 Gb/s 80 km, 100 km C49 194.9 1538.19
SFP+ DWDM 10G C50 10.3 Gb/s 80 km, 100 km C50 195.0 1537.40
SFP+ DWDM 10G C51 10.3 Gb/s 80 km, 100 km C51 195.1 1536.61
SFP+ DWDM 10G C52 10.3 Gb/s 80 km, 100 km C52 195.2 1535.82
SFP+ DWDM 10G C53 10.3 Gb/s 80 km, 100 km C53 195.3 1535.04
SFP+ DWDM 10G C54 10.3 Gb/s 80 km, 100 km C54 195.4 15.34.25
SFP+ DWDM 10G C55 10.3 Gb/s 80 km, 100 km C55 195.5 1533.47
SFP+ DWDM 10G C56 10.3 Gb/s 80 km, 100 km C56 195.6 1532.68
SFP+ DWDM 10G C57 10.3 Gb/s 80 km, 100 km C57 195.7 1531.90
SFP+ DWDM 10G C58 10.3 Gb/s 80 km, 100 km C58 195.8 1531.12
SFP+ DWDM 10G C59 10.3 Gb/s 80 km, 100 km C59 195.9 1530.33
SFP+ DWDM 10G C60 10.3 Gb/s 80 km, 100 km C60 196.0 1529.55
SFP+ DWDM 10G C61 10.3 Gb/s 80 km, 100 km C61 196.1 1528.77

* – Wideband Receiver

SFP+ 10G DWDM L-Band (модулі перепрограмуємі)
Model SFP+ 10G transceiver (L-Band) Data rate Distance Channel Frequency, THz Wavelength, nm
SFP+ DWDM 10G L62 10.3 Gb/s 80 km, 100 km L62 186.2 1610.06
SFP+ DWDM 10G L63 10.3 Gb/s 80 km, 100 km L63 186.3 1609.19
SFP+ DWDM 10G L64 10.3 Gb/s 80 km, 100 km L64 186.4 1608.33
SFP+ DWDM 10G L65 10.3 Gb/s 80 km, 100 km L65 186.5 1607.47
SFP+ DWDM 10G L66 10.3 Gb/s 80 km, 100 km L66 186.6 1606.61
SFP+ DWDM 10G L67 10.3 Gb/s 80 km, 100 km L67 186.7 1605.74
SFP+ DWDM 10G L68 10.3 Gb/s 80 km, 100 km L68 186.8 1604.88
SFP+ DWDM 10G L69 10.3 Gb/s 80 km, 100 km L69 186.9 1604.03
SFP+ DWDM 10G L70 10.3 Gb/s 80 km, 100 km L70 187.0 1603.17
SFP+ DWDM 10G L71 10.3 Gb/s 80 km, 100 km L71 187.1 1602.31
SFP+ DWDM 10G L72 10.3 Gb/s 80 km, 100 km L72 187.2 1601.46
SFP+ DWDM 10G L73 10.3 Gb/s 80 km, 100 km L73 187.3 1600.60
SFP+ DWDM 10G L74 10.3 Gb/s 80 km, 100 km L74 187.4 1599.75
SFP+ DWDM 10G L75 10.3 Gb/s 80 km, 100 km L75 187.5 1598.89
SFP+ DWDM 10G L76 10.3 Gb/s 80 km, 100 km L76 187.6 1598.04
SFP+ DWDM 10G L77 10.3 Gb/s 80 km, 100 km L77 187.7 1597.19
SFP+ DWDM 10G L78 10.3 Gb/s 80 km, 100 km L78 187.8 1596.34
SFP+ DWDM 10G L79 10.3 Gb/s 80 km, 100 km L79 187.9 1595.49
SFP+ DWDM 10G L80 10.3 Gb/s 80 km, 100 km L80 188.0 1594.64
SFP+ DWDM 10G L81 10.3 Gb/s 80 km, 100 km L81 188.1 1593.79
SFP+ DWDM 10G L82 10.3 Gb/s 80 km, 100 km L82 188.2 1592.95
SFP+ DWDM 10G L83 10.3 Gb/s 80 km, 100 km L83 188.3 1592.10
SFP+ DWDM 10G L84 10.3 Gb/s 80 km, 100 km L84 188.4 1591.26
SFP+ DWDM 10G L85 10.3 Gb/s 80 km, 100 km L85 188.5 1590.41
SFP+ DWDM 10G L86 10.3 Gb/s 80 km, 100 km L86 188.6 1589.57
SFP+ DWDM 10G L87 10.3 Gb/s 80 km, 100 km L87 188.7 1588.73
SFP+ DWDM 10G L88 10.3 Gb/s 80 km, 100 km L88 188.8 1587.88
SFP+ DWDM 10G L89 10.3 Gb/s 80 km, 100 km L89 188.9 1587.04
SFP+ DWDM 10G L90 10.3 Gb/s 80 km, 100 km L90 189.0 1586.20
SFP+ DWDM 10G L91 10.3 Gb/s 80 km, 100 km L91 189.1 1585.36
SFP+ DWDM 10G L92 10.3 Gb/s 80 km, 100 km L92 189.2 1584.53
SFP+ DWDM 10G L93 10.3 Gb/s 80 km, 100 km L93 189.3 1583.69
SFP+ DWDM 10G L94 10.3 Gb/s 80 km, 100 km L94 189.4 1582.85
SFP+ DWDM 10G L95 10.3 Gb/s 80 km, 100 km L95 189.5 1582.02
SFP+ DWDM 10G L96 10.3 Gb/s 80 km, 100 km L96 189.6 1581.18
SFP+ DWDM 10G L97 10.3 Gb/s 80 km, 100 km L97 189.7 1580.35
SFP+ DWDM 10G L98 10.3 Gb/s 80 km, 100 km L98 189.8 1579.52
SFP+ DWDM 10G L99 10.3 Gb/s 80 km, 100 km L99 189.9 1578.69
SFP+ DWDM 10G L00 10.3 Gb/s 80 km, 100 km L00 190.0 1577.86
SFP+ DWDM 10G L01 10.3 Gb/s 80 km, 100 km L01 190.1 1577.03
SFP+ DWDM 10G L02 10.3 Gb/s 80 km, 100 km L02 190.2 1576.20
SFP+ DWDM 10G L03 10.3 Gb/s 80 km, 100 km L03 190.3 1575.37
SFP+ DWDM 10G L04 10.3 Gb/s 80 km, 100 km L04 190.4 1574.54
SFP+ DWDM 10G L05 10.3 Gb/s 80 km, 100 km L05 190.5 1573.71
SFP+ DWDM 10G L06 10.3 Gb/s 80 km, 100 km L06 190.6 1572.89
SFP+ DWDM 10G L07 10.3 Gb/s 80 km, 100 km L07 190.7 1572.06
SFP+ DWDM 10G L08 10.3 Gb/s 80 km, 100 km L08 190.8 1571.24
SFP+ DWDM 10G L09 10.3 Gb/s 80 km, 100 km L09 190.9 1570.42

* – Wideband Receiver
